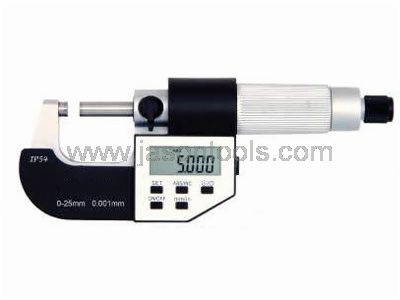

Micrometers Manufacturer,633115

-Protection level IP54

-Display data is origin data of absolute measurement after changing battery

-Chrome-plated or painted frame.Carbide measuring faces

-Criterion:DIN863/1,DIN40050/IEC529

-Resolution: 0.001mm/0.00005"

Metric			Inch			Accuracy
Order No.		Range	Order No.		Range
Chrome-plated frame	Painted frame	Range	Chrome-plated frame	Painted frame	Range
Double measuring forces( Ratchet stop and Ratchet friction thimble)
633115	633123	0-25mm	633131	633139	0-1”	0.004mm
633116	633124	25-50mm	633132	633140	1-2”	0.004mm
633117	633125	50-75mm	633133	633141	2-3”	0.005mm
633118	633126	75-100mm	633134	633142	3-4”	0.005mm
633119	633127	100-125mm	633135	633143	4-5”	0.006mm
633120	633128	125-150mm	633136	633144	5-6”	0.006mm
633121	633129	150-175mm	633137	633145	6-7”	0.007mm
633122	633130	175-200mm	633138	633146	7-8”	0.007mm
