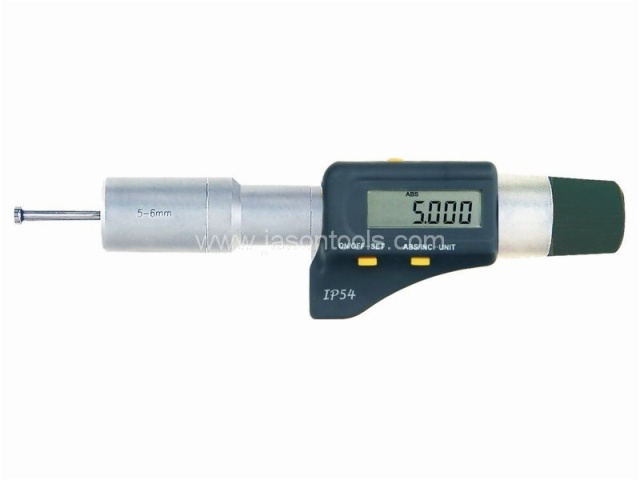

-Range 2-6mm without extension rods
-Measurement can be taken closer to the bottom of blind bore and can be taken into a deep hole with an extension rod
-Highly durable because of carbide-tipped contact points; Ratchet stop
-Protection level IP54
-Criterion: DIN40050/IEC529
-RS232 data output. Conneting cable: P1102(Optional)

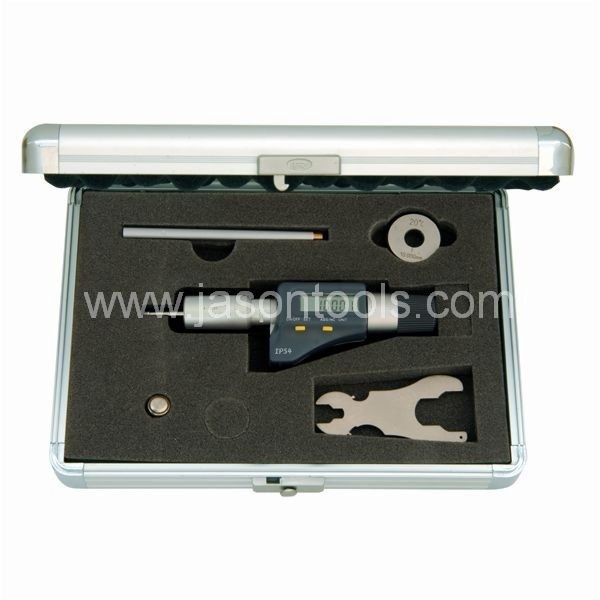

-Within 100mm/4", Supplied with setting rings
-Range 2-6mm/0.08-0.28": Two point models for very small holes
Order No.
|
Range
|
Accuracy
|
Setting rings
|
Metric
|
633370
|
2-2.5mm
|
0.004mm
|
Ф2.5mm
|
633371
|
2.5-3mm
|
0.004mm
|
Ф2.5mm
|
633372
|
3-4mm
|
0.004mm
|
Ф4mm
|
633373
|
4-5mm
|
0.004mm
|
Ф5mm
|
633374
|
5-6mm
|
0.004mm
|
Ф6mm
|
Inch
|
633375
|
0.08-0.1”
|
0.00016”
|
0.1”
|
633376
|
0.1-0.12”
|
0.00016”
|
0.1”
|
633377
|
0.12-1.16”
|
0.00016”
|
0.16”
|
633378
|
0.16-0.2”
|
0.00016”
|
0.16”
|
633379
|
0.2-0.24”
|
0.00016”
|
0.24”
|
633380
|
0.24-0.28”
|
0.00016”
|
0.24”
|
