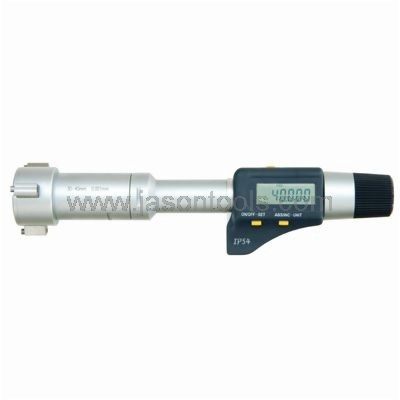

-Measurement can be taken closer to the bottom of the blind bore and can be taken into a deep hole with an extension rod
-Highly durable because of carbide-tipped contact points; Ratchet stop
-Protection level IP54
-Criterion: DIN40050/IEC529
-RS232 data output. Connecting carble: P1102( Optional)

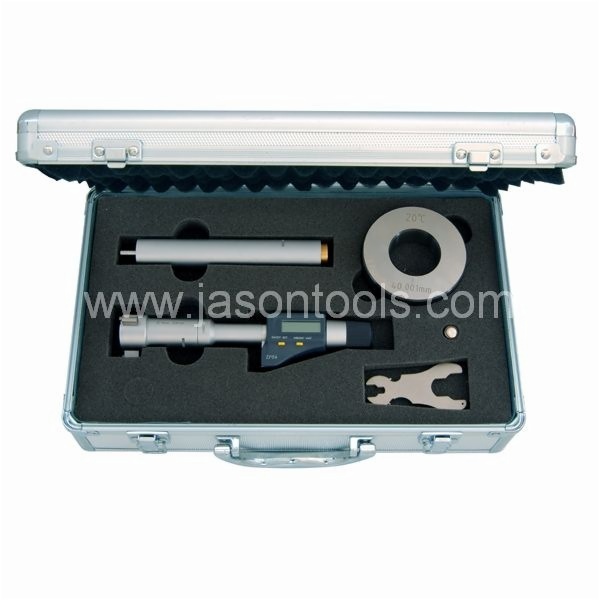

-Within 100mm/4", Supplied with setting rings
-Range 6-12mm/0.275-0.5": Without carbide-tipped contact points
|
Order No.
|
Range
|
Accuracy
|
Setting rings
|
Extension rods
|
|
Chrome-plated surface
|
|
Metric
|
|
633387
|
6-8mm
|
0.004mm
|
Ф6mm
|
100mm
|
|
633388
|
8-10mm
|
0.004mm
|
Ф8mm
|
100mm
|
|
633389
|
10-12mm
|
0.004mm
|
Ф10mm
|
100mm
|
|
633390
|
12-16mm
|
0.004mm
|
Ф16mm
|
150mm
|
|
633391
|
16-20mm
|
0.004mm
|
Ф16mm
|
150mm
|
|
633392
|
20-25mm
|
0.004mm
|
Ф25mm
|
150mm
|
|
633393
|
25-30mm
|
0.004mm
|
Ф25mm
|
150mm
|
|
633394
|
30-40mm
|
0.004mm
|
Ф40mm
|
150mm
|
|
633395
|
40-50mm
|
0.005mm
|
Ф40mm
|
150mm
|
|
633396
|
50-63mm
|
0.005mm
|
Ф62mm
|
150mm
|
|
633397
|
62-75mm
|
0.005mm
|
Ф62mm
|
150mm
|
|
633398
|
75-88mm
|
0.005mm
|
Ф87mm
|
150mm
|
|
633399
|
87-100mm
|
0.005mm
|
Ф87mm
|
150mm
|
|
Inch
|
|
633400
|
0.275-0.35”
|
0.00016”
|
0.275”
|
4”
|
|
633401
|
0.35-0.425”
|
0.00016”
|
0.35”
|
4”
|
|
633402
|
0.425-0.5”
|
0.00016”
|
0.5”
|
4”
|
|
633403
|
0.5-0.65”
|
0.00016”
|
0.65”
|
6”
|
|
633404
|
0.65-0.8”
|
0.00016”
|
0.65”
|
6”
|
|
633405
|
0.8-1”
|
0.00016”
|
1”
|
6”
|
|
633406
|
1-1.2”
|
0.00016”
|
1”
|
6”
|
|
633407
|
1.2-1.6”
|
0.00016”
|
1.6”
|
6”
|
|
633408
|
1.6-2”
|
0.0002”
|
1.6”
|
6”
|
|
633409
|
2-2.5”
|
0.0002”
|
2.5”
|
6”
|
|
633410
|
2.5-3”
|
0.0002”
|
2.5”
|
6”
|
|
633411
|
3-3.5”
|
0.0002”
|
3.5”
|
6”
|
|
633412
|
3.5-4”
|
0.0002”
|
3.5”
|
6”
|
