-Measurement can be taken closer to the bottom of the blind bore and can be taken into a deep hole with an extension rod
-Highly durable because of carbide-tipped contact points; Ratchet stop
-Protection level IP54
-Criterion: DIN40050/IEC529
-RS232 data output. Connecting carble: P1102( Optional)

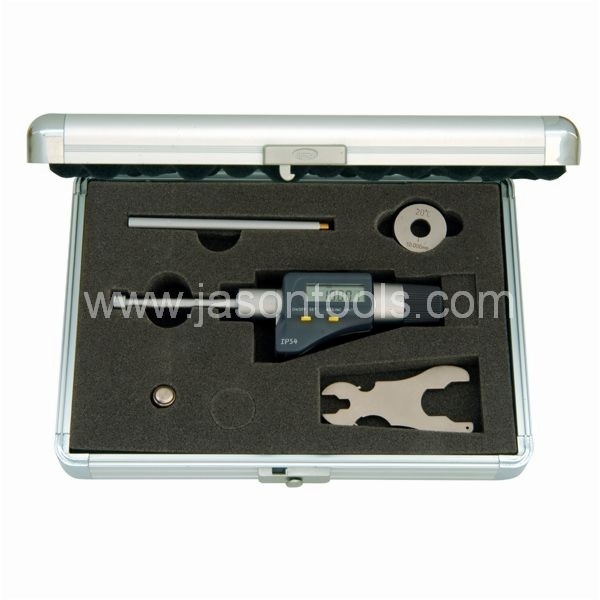

-Within 100mm/4", Supplied with setting rings
-Range 6-12mm/0.275-0.5": Without carbide-tipped contact points
Order No.
|
Range
|
Accuracy
|
Setting rings
|
Extension rods
|
Metric
|
633381
|
6-8mm
|
0.004mm
|
Ф6mm
|
100mm
|
633382
|
8-10mm
|
0.004mm
|
Ф8mm
|
100mm
|
633383
|
10-12mm
|
0.004mm
|
Ф10mm
|
100mm
|
Inch
|
633384
|
0.275-0.35”
|
0.00016”
|
0.275”
|
4”
|
633385
|
0.35-0.425”
|
0.00016”
|
0.35”
|
4”
|
633386
|
0.425-0.5”
|
0.00016”
|
0.5”
|
4”
|
