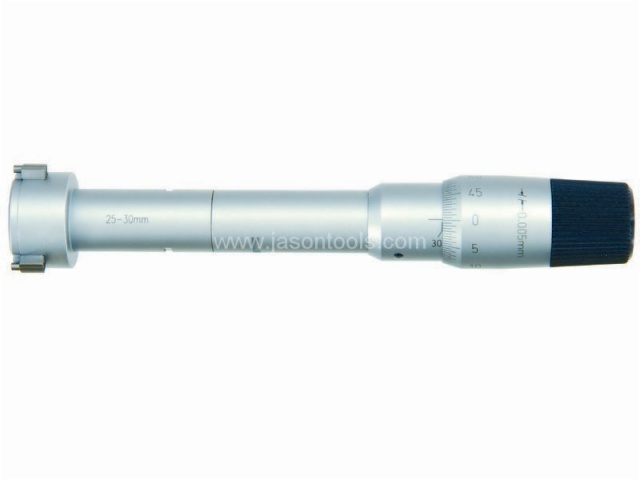

-Measurement can be taken closer to the bottom of the blind bore and can be taken into a deep hole with an extension rod
-Highly durable because of carbide-tipped contact points
-Ratchet stop
-Within 100mm/4": Supplied with setting rings. Over 12mm/0.5": Titanium-plated anvils optional
-Resolution: With 12mm/0.5: 0.001mm/0.0001", over 12mm/0.5": 0.005mm/0.0002"
|
Order No.
|
Range
|
Accuracy
|
Setting rings
|
Extension rods
|
|
Chrome-plated surface
|
|
Metric
|
|
633298
|
6-8mm
|
0.004mm
|
Ф6mm
|
100mm
|
|
633299
|
8-10mm
|
0.004mm
|
Ф8mm
|
100mm
|
|
633300
|
10-12mm
|
0.004mm
|
Ф10mm
|
100mm
|
|
633301
|
12-16mm
|
0.004mm
|
Ф16mm
|
150mm
|
|
633302
|
16-20mm
|
0.004mm
|
Ф16mm
|
150mm
|
|
633303
|
20-25mm
|
0.004mm
|
Ф25mm
|
150mm
|
|
633304
|
25-30mm
|
0.004mm
|
Ф25mm
|
150mm
|
|
633305
|
30-40mm
|
0.004mm
|
Ф40mm
|
150mm
|
|
633306
|
40-50mm
|
0.005mm
|
Ф40mm
|
150mm
|
|
633307
|
50-63mm
|
0.005mm
|
Ф62mm
|
150mm
|
|
633308
|
62-75mm
|
0.005mm
|
Ф62mm
|
150mm
|
|
633309
|
75-88mm
|
0.005mm
|
Ф87mm
|
150mm
|
|
633310
|
87-100mm
|
0.005mm
|
Ф87mm
|
150mm
|
|
Inch
|
|
633311
|
0.275-0.35”
|
0.00016”
|
0.275”
|
4”
|
|
633312
|
0.35-0.425”
|
0.00016”
|
0.35”
|
4”
|
|
633313
|
0.425-0.5”
|
0.00016”
|
0.5”
|
4”
|
|
633314
|
0.5-0.65”
|
0.00016”
|
0.65”
|
6”
|
|
633315
|
0.65-0.8”
|
0.00016”
|
0.65”
|
6”
|
|
633316
|
0.8-1”
|
0.00016”
|
1”
|
6”
|
|
633317
|
1-1.2”
|
0.00016”
|
1”
|
6”
|
|
633318
|
1.2-1.6”
|
0.00016”
|
1.6”
|
6”
|
|
633319
|
1.6-2”
|
0.0002”
|
1.6”
|
6”
|
|
633320
|
2-2.5”
|
0.0002”
|
2.5”
|
6”
|
|
633321
|
2.5-3”
|
0.0002”
|
2.5”
|
6”
|
|
633322
|
3-3.5”
|
0.0002”
|
3.5”
|
6”
|
|
633323
|
3.5-4”
|
0.0002”
|
3.5”
|
6”
|
