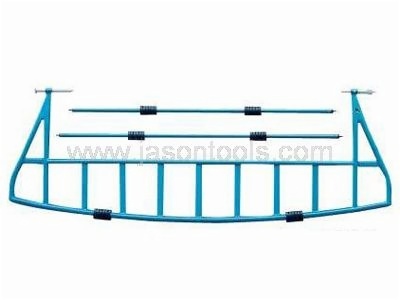

-Similar to caliper in outside measurment
Caliper-type pipe combined frame for light weight and high rigidity
-Wide measuring range with adjustable anvil. High accuracy standard collars enable that reading does not have to be reset when changing collars.
-Travel of micrometer head: 50mm/2"; Micrometer thread pitch: 1mm/0.025"; Throat depth: 350mm/14"
-Standard collars: 50mm/2",100mm/4"
-Carbide measuring faces,painted frame,ratchet stop
-Resolution: 0.01mm/0.001"
Metric
|
Inch
|
Accuracy
|
Order No.
|
Range
|
Order No.
|
Range
|
633071
|
1000-1200mm
|
633081
|
40-48”
|
0.020mm
|
633072
|
1200-1400mm
|
633082
|
48-56”
|
0.024mm
|
633073
|
1400-1600mm
|
633083
|
56-64”
|
0.028mm
|
633074
|
1600-1800mm
|
633084
|
64-72”
|
0.031mm
|
633075
|
1800-2000mm
|
633085
|
72-80”
|
0.034mm
|
633076
|
2000-2200mm
|
633086
|
80-88”
|
0.040mm
|
633077
|
2200-2400mm
|
633087
|
88-96”
|
0.044mm
|
633078
|
2400-2600mm
|
633088
|
96-104”
|
0.048mm
|
633079
|
2600-2800mm
|
633089
|
104-112”
|
0.052mm
|
633080
|
2800-3000mm
|
633090
|
112-120”
|
0.056mm
|
