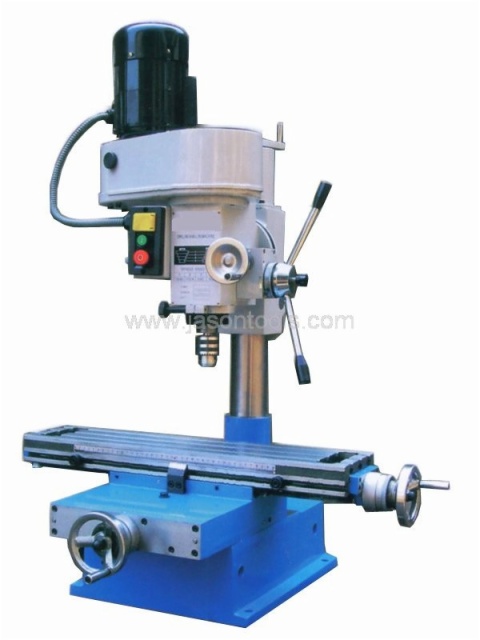

Drilling & Milling Machine 521152

Drilling & Milling Machine
Item Code:521152 Features:Drilling & Milling Machine JYZX16A
  • Description

-Drilling capacity: 16mm

-End milling capacity: 20mm

-Face milling capacity: 53mm

-Spindle taper: MT3

-Table size: 630x150

-Spindle speed(6): 400-1600r.p.m

-Spindle travel: 80mm

-Spindle to table: 310mm

-Diameter of column: 70mm

-Longitudinal travel: 350mm

-Cross travel: 145mm

-Motor: 370W

-Net weight: 110kgs/125kgs
